None Module MPO Patch Panel / MTP Rack Mount Angled 144 Fiber Patch Panel LC OM3 OM4
Descriptions:
- Size: Standard 19'' 1U
- Maximum capacity: 144 cores ( 12 pcs 12 cores MPO to LC Fanout Patch Cable)
- Angel type, easier to maintain and manage.
- None module type, save more cost.
- Front face plate: 12 pcs 6 ports LC duplex adapter port (can change to SC, FC, ST, ... as customer request)
- Behind of box design with 12pcs of adapter ports for MPO adapter installation.
Quick informations:
- Connector 1: MPO, MTP fanout patch cable
- Connector 2: LC, FC, ST, SC or customized 8 to 24 strands cable
- Cable length: 0.3m, 0.5m, 1.0m, 1.5m or customized
- Patch panel size: 480x245x1U(mm)
- Capacity: 144 cores
- Maximum upload with 12 pcs of face plate
Features:
- Integrate fiber patch panel with easy plug and play fiber cassette module for optimizing cabling management efficiency
- Light weight, easy to install
- Easy for installation and operation .
- Available for the installation of FC/SC/ST/LC adaptor.
- Mount to standard EIA 19'' rack rails
- Provides a complete system solution for connectivity
- Provide higher patch field density in fewer rack units saving valuable space
- Assures flexibility and ease of network deployment and moves, adds, and changes

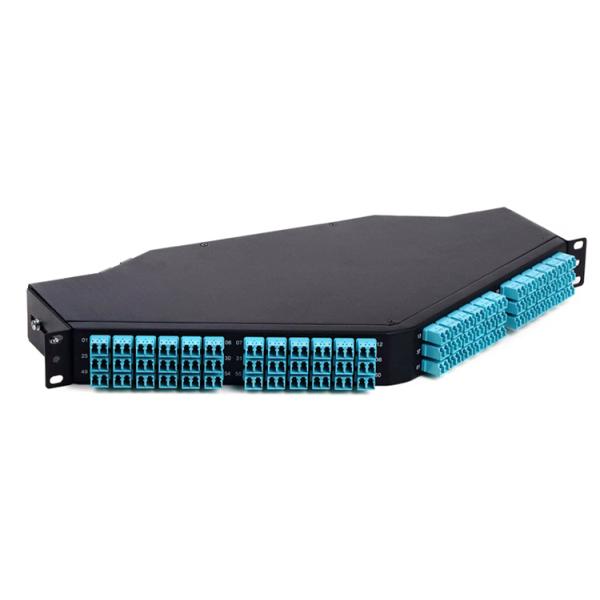

Product picutures:
Product detail:
MTP/MPO Connector Specifications:
| Type | Single Mode | Single Mode | Multi Mode |
| | (APC Polish) | (UPC Polish) | (PC Polish) |
| Fiber Count | 8,12,24 etc. | 8,12,24 etc. | 8,12,24 etc. |
| Fiber Type | G652D,G657A1 etc. | G652D,G657A1 etc. | OM1,OM2,OM3 etc. |
| Max. Insertion Loss | Elite | Standard | Elite | Standard | Elite | Standard |
| | Low Loss | | Low Loss | | Low Loss | |
| | ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.60dB |
| Return Loss | ≥60 dB | ≥60 dB | NA |
| Durability | ≥500 times | ≥500 times | ≥500 times |
| Operating Temperature | -40℃~+80℃ | -40℃~+80℃ | -40℃~+80℃ |
| Test Wavelength | 1310nm | 1310nm | 1310nm |
| Insert-pull test | 1000 times＜0.5 dB |
| Interchange | ＜0.5 dB |
| Anti-tensile force | 15kgf |
Our advatanges:
- Kocent Optec Limited with more than 10 years of experiences in fiber optic industry, we provide OEM and ODM service for all type of MPO/MTP rack mountable patch panel.
- With full set of production line for steel tape production and production line for MPO patch cord, we supply the MPO/MTP patch panel with full loaded of patch cable and adapter.
- All installation charge is free.
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
